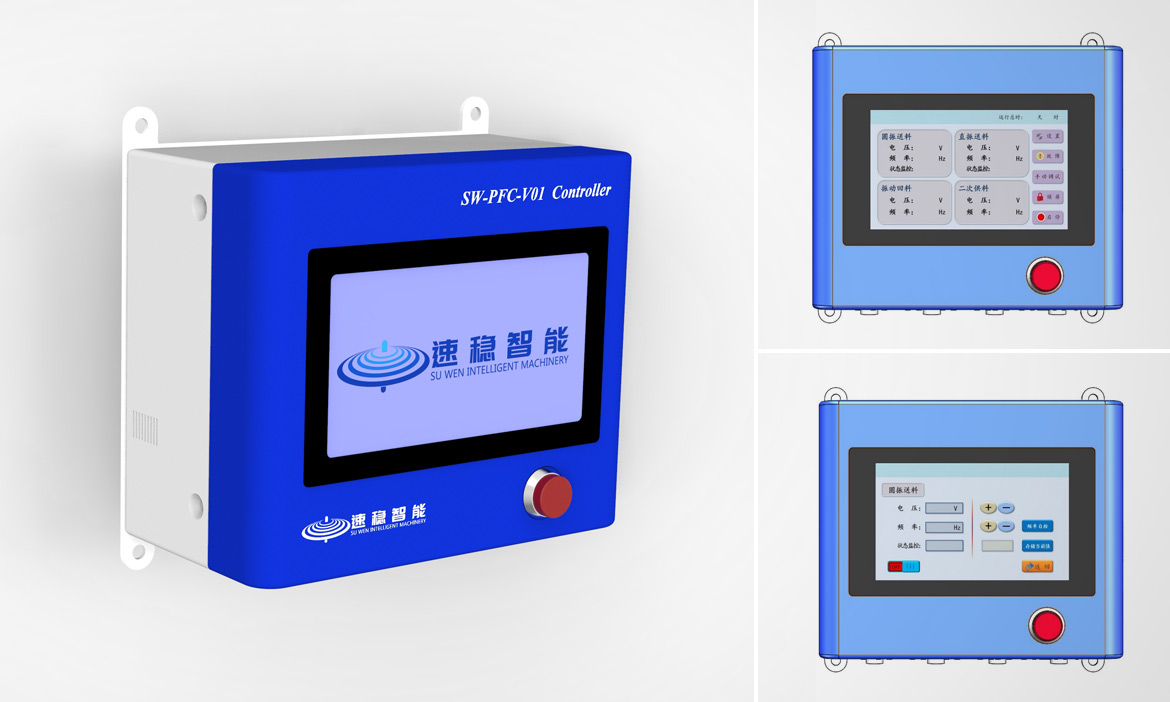

压电驱动式振动机械多路控制器
产品简介：
“压电驱动式振动机械多路控制器”是常州速稳智能机械有限公司自主研发的新一代控制器。 产品特点：
“压电驱动式振动机械多路控制器”是常州速稳智能机械有限公司自主研发的新一代控制器。 产品特点：
1.4.3寸触摸屏显示及控制，方便操作和查看数据
2.多路控制，一台控制器同时可控制4路振动器
3.界面友好，操作系统简单，中文显示，实时显示每路控制参数
4.每路输出参数：电压0-220V，精度0.1V；频率50-600Hz,精度0.1Hz
5.两路主路（圆振和直振）闭环控制，振动状态实时监控，自动稳速
6.每路可自动搜频，自动寻找最佳工作频率点，减少人为工作
7.每路输出可单独启停，也可多路一键启停
8.PLC远程控制启停，或外部开关控制启停
9.闭环控制参数自动存储，重新开机自动按照存储数据控制输出
10.具备各种报警功能，实时检测设备工作状态，中文界面提示报警，通俗易懂，便于故障诊断
11.外壳采用轻质、高强度阻燃材料，耐磕碰、阻燃烧
12.485-I/O通讯，与工控机数据实时互换，便于主机辅机协同工作
13.采用全进口高端工业芯片，保证产品质量和稳定性
14.自主设计集成电路、开发软件系统，掌握核心技术
15.2路24V直流供电（24W）,便于光电、传感器、电磁阀之类配件用电
1.噪音低 The noise is very low
The products we developed have been tested and tested in practice. The noise generated by the products during operation is very low, only 30-40db.
2.输送平稳 Smooth transportation
Our series of products, under the premise of ensuring the speed, the material in the process of conveying smooth sliding forward, small jump, no damage to the material.
3.分辨率高 High resolution
The vibration amplitude of the equipment is small and uniform, and the precision, light and thin parts can be accurately sorted and aligned at high speed.
4.能耗低 Low energy consumption
In the case of conveying the same material, the power consumption of the piezoelectric feeder is less than 10% of that of the electromagnetic feeder, which can save more than 90% of the power consumption.
5.速度可调范围宽 Wide speed adjustable range
By adjusting the power controller, the material speed can be controlled freely. It is convenient and flexible, with a large controllable range, and can meet a variety of needs.
6.结构简单、调节方便 Simple structure and convenient adjustment
Under different working requirements, the piezoelectric feeder does not need to readjust its internal structure, but only needs to adjust the working voltage and frequency of the controller.
7.物料免磁化 Magnetization free material
The piezoelectric feeder is driven by piezoelectric elements, so it does not produce or accept magnetic interference, and there is no magnetization problem to the material.
